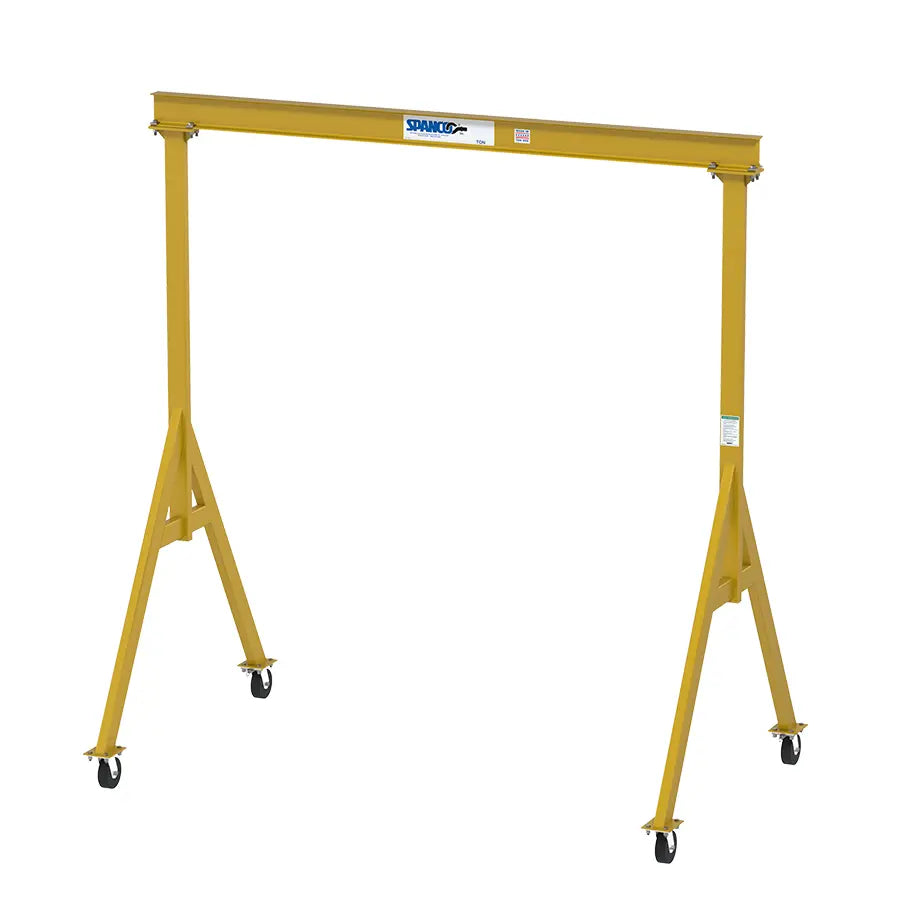

A-Series Adjustable Height Steel Gantry Cranes
A-Series Gantry Cranes are portable, lightweight, and affordable lifting solutions with sturdy A-frame designs. They have greater clear spans because they don’t require four brace legs. Capacities up to 5 tons are available. Use the reference chart and price tables below to help you find the gantry crane that best fits your needs.
A-Series Gantry Crane Reference Chart
(for use with charts below)
A-Series Adjustable Height Gantry Cranes by Capacity
1 Ton
A Capacity (Tons) |
B Overall Span |
B2 Span Between Wheel Centers |
C Clear Span |
D1 Height Under Beam |
D2 Overall Height |
E1 Beam Size |
E2 Beam Flange Width |
F Caster Frame Spread |
G Wheel Dia. |
Net Weight (lbs) |
Model No. | Price (USD) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | 8' | 7' 3" | 6' 11" | Min: 7' 2" Max: 10' 2" |
Min: 7' 8" Max: 10' 8" |
S6" x 12.5# | 3 3/8" | 5' 5" | 6" | 404 | 1A0810 | 4,476 |
1 | 8' | 7' 3" | 6' 11" | Min: 9' 8" Max: 12' 8" |
Min: 10' 2" Max: 13' 2" |
S6" x 12.5# | 3 3/8" | 5' 5" | 6" | 428 | 1A0812 | 4,663 |
1 | 8' | 7' 3" | 6' 11" | Min: 12' Max: 15' 6" |
Min: 12' 6" Max: 16' |
S6" x 12.5# | 3 3/8" | 6' 6" | 8" | 694 | 1A0815 | 6,872 |
1 | 10' | 9' 3" | 8' 11" | Min: 7' 2" Max: 10' 2" |
Min: 7' 8" Max: 10' 8" |
S6" x 12.5# | 3 3/8" | 5' 5" | 6" | 429 | 1A1010 | 4,552 |
1 | 10' | 9' 3" | 8' 11" | Min: 9' 8" Max: 12' 8" |
Min: 10' 2" Max: 13' 2" |
S6" x 12.5# | 3 3/8" | 5' 5" | 6" | 453 | 1A1012 | 4,733 |
1 | 10' | 9' 3" | 8' 11" | Min: 12' Max: 15' 6" |
Min: 12' 6" Max: 16' |
S6" x 12.5# | 3 3/8" | 6' 6" | 8" | 719 | 1A1015 | 6,945 |
1 | 12' | 11' 3" | 10' 11" | Min: 7' 2" Max: 10' 2" |
Min: 7' 8" Max: 10' 8" |
S6" x 12.5# | 3 3/8" | 5' 5" | 6" | 454 | 1A1210 | 4,641 |
1 | 12' | 11' 3" | 10' 11" | Min: 9' 8" Max: 12' 8" |
Min: 10' 2" Max: 13' 2" |
S6" x 12.5# | 3 3/8" | 5' 5" | 6" | 478 | 1A1212 | 4,826 |
1 | 12' | 11' 3" | 10' 11" | Min: 12' Max: 15' 6" |
Min: 12' 6" Max: 16' |
S6" x 12.5# | 3 3/8" | 6' 6" | 8" | 744 | 1A1215 | 7,037 |
1 | 15' | 14' 3" | 13' 11" | Min: 7' 2" Max: 10' 2" |
Min: 7' 10" Max: 10' 10" |
S8" x 18.4# | 4" | 5' 5" | 6" | 533 | 1A1510 | 5,195 |
1 | 15' | 14' 3" | 13' 11" | Min: 9' 8" Max: 12' 8" |
Min: 10' 4" Max: 13' 4" |
S8" x 18.4# | 4" | 5' 5" | 6" | 557 | 1A1512 | 5,378 |
1 | 15' | 14' 3" | 13' 10" | Min: 12' Max: 15' 6" |
Min: 12' 8" Max: 16' 2" |
S8" x 18.4# | 4" | 6' 6" | 8" | 823 | 1A1515 | 7,589 |
1 | 20' | 19' 3" | 18' 11" | Min: 7' 2" Max: 10' 2" |
Min: 8' 1" Max: 11' 1" |
W10" x 30# | 5 3/4" | 5' 5" | 6" | 904 | 1A2010-W | 5,543 |
1 | 20' | 19' 3" | 18' 11" | Min: 9' 8" Max: 12' 8" |
Min: 10' 7" Max: 13' 7" |
W10" x 30# | 5 3/4" | 5' 5" | 6" | 928 | 1A2012-W | 5,730 |
1 | 20' | 19' 3" | 18' 10" | Min: 12' Max: 15' 6" |
Min: 12' 11" Max: 16' 5" |
W10" x 30# | 5 3/4" | 6' 6" | 8" | 1194 | 1A2015-W | 7,942 |
1 | 25' | 24' 3" | 23' 11" | Min: 7' 2" Max: 10' 2" |
Min: 8' 1" Max: 11' 1" |
W10" x 30# | 5 3/4" | 5' 5" | 6" | 1054 | 1A2510-W | 6,566 |
1 | 25' | 24' 3" | 23' 11" | Min: 9' 8" Max: 12' 8" |
Min: 10' 7" Max: 13' 7" |
W10" x 30# | 5 3/4" | 5' 5" | 6" | 1204 | 1A2512-W | 6,754 |
1 | 25' | 24' 3" | 23' 10" | Min: 12' Max: 15' 6" |
Min: 12' 11" Max: 16' 5" |
W10" x 30# | 5 3/4" | 6' 6" | 8" | 1344 | 1A2515-W | 8,963 |
1 | 30' | 29' 3" | 28' 10" | Min: 9' Max: 12' 6" |
Min: 9' 11" Max: 13' 5" |
W10" x 30# | 5 3/4" | 6' 6" | 8" | 1435 | 1A3012-W | 9,814 |
1 | 30' | 29' 3" | 28' 10" | Min: 12' Max: 15' 6" |
Min: 12' 11" Max: 16' 5" |
W10" x 30# | 5 3/4" | 6' 6" | 8" | 1495 | 1A3015-W | 10,060 |
1 | 35' | 34' 1" | 34' 1" | Min: 9' Max: 12' 6" |
Min: 10' 5" Max: 13' 11" |
W16" x 50# | 7 1/8" | 6' 6" | 8" | 2285 | 1A3512-W | 11,825 |
1 | 35' | 34' 1" | 34' 1" | Min: 12' Max: 15' 6" |
Min: 13' 5" Max: 16' 11" |
W16" x 50# | 7 1/8" | 6' 6" | 8" | 2344 | 1A3515-W | 12,070 |
All weights are estimates and not guaranteed for shipping purposes.
2 Ton
A Capacity (Tons) |
B Overall Span |
B2 Span Between Wheel Centers |
C Clear Span |
D1 Height Under Beam |
D2 Overall Height |
E1 Beam Size |
E2 Beam Flange Width |
F Caster Frame Spread |
G Wheel Dia. |
Net Weight (lbs) |
Model No. | Price (USD) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
2 | 10' | 9' 3" | 8' 10" | Min: 9' Max: 12' 6" |
Min: 9' 8" Max: 13' 2" |
S8" x 18.4# | 4" | 6' 6" | 8" | 719 | 2A1012 | 6,830 |
2 | 10' | 9' 3" | 8' 10" | Min: 12' Max: 15' 6" |
Min: 12' 8" Max: 16' 2" |
S8" x 18.4# | 4" | 6' 6" | 8" | 778 | 2A1015 | 7,076 |
2 | 15' | 14' 3" | 13' 10" | Min: 9' Max: 12' 6" |
Min: 9' 10" Max: 13' 4" |
S10" x 25.4# | 4 5/8" | 6' 6" | 8" | 916 | 2A1512 | 7,543 |
2 | 15' | 14' 3" | 13' 10" | Min: 12' Max: 15' 6" |
Min: 12' 10" Max: 16' 4" |
S10" x 25.4# | 4 5/8" | 6' 6" | 8" | 975 | 2A1515 | 7,833 |
2 | 20' | 19' 3" | 18' 10' | Min: 9' Max: 12' 6" |
Min: 10' 11" Max: 13' 7" |
W12" x 35# | 6 1/2" | 6' 6" | 8" | 1235 | 2A2012-W | 8,058 |
2 | 20' | 19' 3" | 18' 10" | Min: 12' Max: 15' 6" |
Min: 13' 1" Max: 16' 7" |
W12" x 35# | 6 1/2" | 6' 6" | 8" | 1294 | 2A2015-W | 8,310 |
2 | 25' | 24' 3" | 23' 10" | Min: 9' Max: 12' 6" |
Min: 10' 11" Max: 13' 7" |
W12" x 35# | 6 1/2" | 6' 6" | 8" | 1410 | 2A2512-W | 9,305 |
2 | 25' | 24' 3" | 23' 10" | Min: 12' Max: 15' 6" |
Min: 13' 1" Max: 16' 7" |
W12" x 35# | 6 1/2" | 6' 6" | 8" | 1469 | 2A2515-W | 9,425 |
2 | 30' | 29' 1" | 28' 8" | Min: 9' Max: 12' 6" |
Min: 10' 5" Max: 13' 11" |
W16" x 50# | 7 1/8" | 6' 6" | 8" | 2035 | 2A3012-W | 10,649 |
2 | 30' | 29' 1" | 28' 8" | Min: 12' Max: 15' 6" |
Min: 13' 5" Max: 16' 11" |
W16" x 50# | 7 1/8" | 6' 6" | 8" | 2095 | 2A3015-W | 10,896 |
All weights are estimates and not guaranteed for shipping purposes.
3 Ton
A Capacity (Tons) |
B Overall Span |
B2 Span Between Wheel Centers |
C Clear Span |
D1 Height Under Beam |
D2 Overall Height |
E1 Beam Size |
E2 Beam Flange Width |
F Caster Frame Spread |
G Wheel Dia. |
Net Weight (lbs) |
Model No. | Price (USD) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
3 | 10' | 9' 1" | 8' 6" | Min: 9' 4" Max: 12' 10" |
Min: 10' 2" Max: 13' 8" |
S10" x 25.4# | 4 5/8" | 6' 6" | 8" | 793 | 3A1012 | 7,687 |
3 | 10' | 9' 1" | 8' 6" | Min: 12' 4" Max: 15' 10" |
Min: 13' 2" Max: 16' 8" |
S10" x 25.4# | 4 5/8" | 6' 6" | 8" | 857 | 3A1015 | 8,081 |
3 | 15' | 14' 1" | 13' 6" | Min: 9' 4" Max: 12' 10" |
Min: 10' 2" Max: 13' 8" |
S10" x 25.4# | 4 5/8" | 6' 6" | 8" | 990 | 3A1512 | 8,151 |
3 | 15' | 14' 1" | 13' 6" | Min: 12' 4" Max: 15' 10" |
Min: 13' 2" Max: 16' 8" |
S10" x 25.4# | 4 5/8" | 6' 6" | 8" | 1054 | 3A1515 | 8,549 |
3 | 20' | 19' 1" | 18' 6' | Min: 9' 4" Max: 12' 10" |
Min: 10' 9" Max: 14' 3" |
W16" x 50# | 7 1/8" | 6' 6" | 8" | 1611 | 3A2012-W | 9,716 |
3 | 20' | 19' 1" | 18' 6" | Min: 12' 4" Max: 15' 10" |
Min: 13' 9" Max: 17' 3" |
W16" x 50# | 7 1/8" | 6' 6" | 8" | 1673 | 3A2015-W | 10,110 |
3 | 25' | 24' 1" | 23' 6" | Min: 9' 4" Max: 12' 10" |
Min: 10' 11" Max: 14' 5" |
W18" x 55# | 7 1/2" | 6' 6" | 8" | 1861 | 3A2512-W | 11,303 |
3 | 25' | 24' 1" | 23' 6" | Min: 12' 4" Max: 15' 10" |
Min: 13' 11" Max: 17' 5" |
W18" x 55# | 7 1/2" | 6' 6" | 8" | 1949 | 3A2515-W | 12,220 |
All weights are estimates and not guaranteed for shipping purposes.
5 Ton
A Capacity (Tons) |
B Overall Span |
B2 Span Between Wheel Centers |
C Clear Span |
D1 Height Under Beam |
D2 Overall Height |
E1 Beam Size |
E2 Beam Flange Width |
F Caster Frame Spread |
G Wheel Dia. |
Net Weight (lbs) |
Model No. | Price (USD) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
5 | 10' | 9' 1" | 8' 6" | Min: 9' 4" Max: 12' 10" |
Min: 10' 2" Max: 13' 8" |
S10" x 25.4# | 4 5/8" | 6' 6" | 8" | 1040 | 5A1012 | 8,573 |
5 | 10' | 9' 1" | 8' 6" | Min: 12' 4" Max: 15' 10" |
Min: 13' 2" Max: 16' 8" |
S10" x 25.4# | 4 5/8" | 6' 6" | 8" | 1124 | 5A1015 | 9,015 |
5 | 15' | 14' 1" | 13' 6" | Min: 9' 4" Max: 12' 10" |
Min: 10' 7" Max: 14' 1" |
S15" x 42.9# | 5 1/2" | 6' 6" | 8" | 1430 | 5A1512 | 9,413 |
5 | 15' | 14' 1" | 13' 6" | Min: 12' 4" Max: 15' 10" |
Min: 13' 7" Max: 17' 1" |
S15" x 42.9# | 5 1/2" | 6' 6" | 8" | 1514 | 5A1515 | 9,853 |
5 | 20' | 19' 1" | 18' 6' | Min: 9' 4" Max: 12' 10" |
Min: 11' 5" Max: 14' 11" |
W24" x 84# | 9" | 6' 6" | 8" | 2466 | 5A2012-W | 10,598 |
5 | 20' | 19' 1" | 18' 6" | Min: 12' 4" Max: 15' 10" |
Min: 14' 5" Max: 17' 11" |
W24" x 84# | 9" | 6' 6" | 8" | 2550 | 5A2015-W | 11,038 |
All weights are estimates and not guaranteed for shipping purposes.
Steel LUG-ALL Winch Hoist Height Adjustment Kits
This Lug-all winch hoist adjustment kit includes two cable winch hoists to change the I-Beam height quickly and easily on steel A-series gantries. Click the Part No. below to add to cart.
