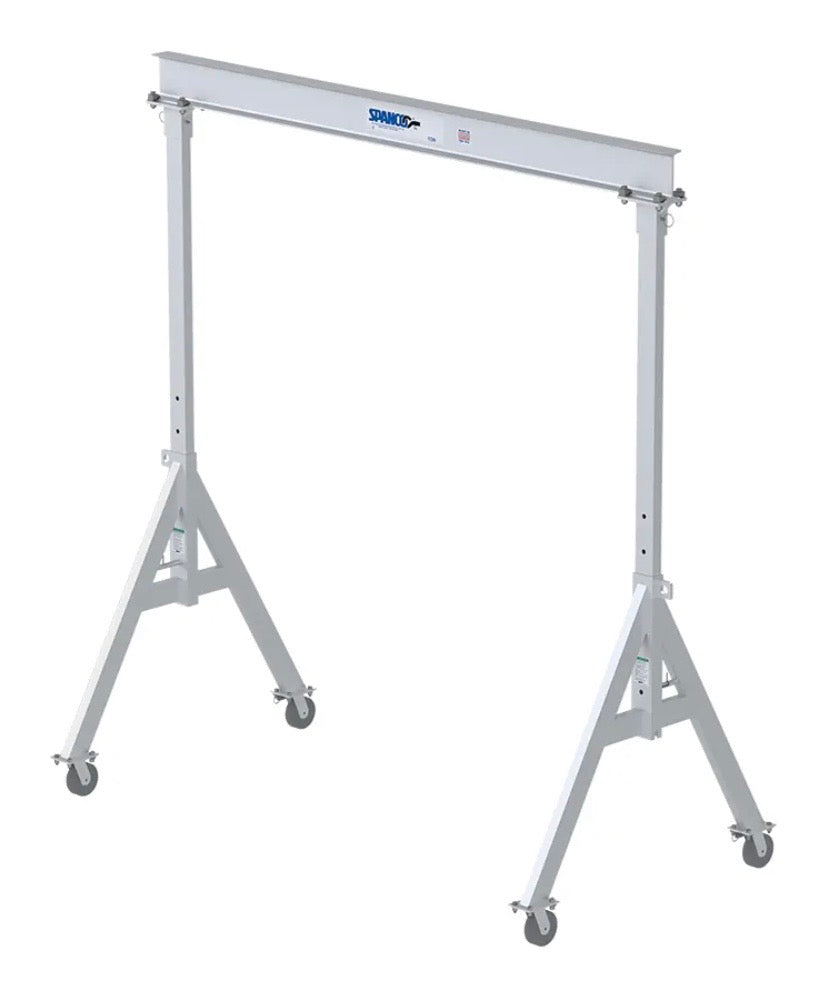

A-Series Adjustable Height Aluminum Gantry Cranes
Starting as light as 116 pounds, our Aluminum Gantry Cranes are lightweight, portable, and extremely stable under load. These adjustable height All-Aluminum Gantries quickly assemble and disassemble, making them popular with contractors who need highly mobile lift equipment that they can take in their service trucks. Capacities up to 3 tons are available. Use the reference chart and price tables below to help you find the gantry crane that best fits your needs.
A-Series Gantry Crane Reference Chart
(for use with charts below)
Click a model No. below to add to your cart
A-Series Aluminum Gantry Cranes by Capacity
1/2 Ton
| A Capacity (Tons) |
B Overall Span |
B2 Span Between Wheel Centers |
C Clear Span |
D1 Height Under Beam |
D2 Overall Height |
E1 Beam Size |
E2 Beam Flange Width |
F Caster Frame Spread |
G Wheel Dia. |
Net Weight (lbs) |
Model No. | Price (USD) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 8' | 7' 3" | 6' 11" | Min: 6' 6" Max: 9' |
Min: 6' 11" Max: 9' 5" |
ALU5" x 3.43# | 3" | 4' 2" | 6" | 116 | 0.5ALU0809 | 3758 |
| 1/2 | 8' | 7' 3" | 6' 11" | Min: 8' 6" Max: 11' |
Min: 8' 11" Max: 11' 5" |
ALU5" x 3.43# | 3" | 4' 2" | 6" | 135 | 0.5ALU0811 | 4221 |
| 1/2 | 10' | 9' 3" | 8' 11" | Min: 6' 6" Max: 9' |
Min: 7' Max: 9' 6" |
ALU6" x 4.3# | 3 3/8" | 4' 2" | 6" | 131 | 0.5ALU1009 | 4431 |
| 1/2 | 10' | 9' 3" | 8' 11" | Min: 8' 6" Max: 11' |
Min: 9' Max: 11' 6" |
ALU6" x 4.3# | 3 3/8" | 4' 2" | 6" | 150 | 0.5ALU1011 | 4894 |
| 1/2 | 12' | 11' 3" | 10' 11" | Min: 6' 6" Max: 9' |
Min: 7' 2" Max: 9' 8" |
ALU8" x 6.35# | 4" | 4' 2" | 6" | 164 | 0.5ALU1209 | 4767 |
| 1/2 | 12' | 11' 3" | 10' 11" | Min: 8' 6" Max: 11' |
Min: 9' 2" Max: 11' 8' |
ALU8" x 6.35# | 4" | 4' 2" | 6" | 183 | 0.5ALU1211 | 5230 |
| 1/2 | 15' | 14' 3" | 13' 11" | Min: 6' 6" Max: 9' |
Min: 7' 2" Max: 9' 8" |
ALU8" x 6.35# | 4" | 4' 2" | 6" | 192 | 0.5ALU1509 | 6115 |
| 1/2 | 15' | 14' 3" | 13' 11" | Min: 8' 6" Max: 11' |
Min: 9' 2" Max: 11' 8' |
ALU8" x 6.35# | 4" | 4' 2" | 6" | 211 | 0.5ALU1511 | 6579 |
All weights are estimates and not guaranteed for shipping purposes.
1 Ton
| A Capacity (Tons) |
B Overall Span |
B2 Span Between Wheel Centers |
C Clear Span |
D1 Height Under Beam |
D2 Overall Height |
E1 Beam Size |
E2 Beam Flange Width |
F Caster Frame Spread |
G Wheel Dia. |
Net Weight (lbs) |
Model No. | Price (USD) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 8' | 7' 3" | 6' 1" | Min: 5' 7" Max: 8' 1" |
Min: 6' 1" Max: 8' 7" |
ALU6" x 4.3# | 3 3/8" | 4' 6" | 6" | 150 | 1ALU0808 | 4411 |
| 1 | 8' | 7' 3" | 6' 1" | Min: 7' 7" Max: 10' 1" |
Min: 8' 1" Max: 10' 7" |
ALU6" x 4.3# | 3 3/8" | 4' 6" | 6" | 157 | 1ALU0810 | 4676 |
| 1 | 8' | 7' 3" | 6' 1" | Min: 9' 7" Max: 12' 1" |
Min: 10' 1" Max: 12' 7" |
ALU6" x 4.3# | 3 3/8" | 4' 6" | 6" | 197 | 1ALU0812 | 5475 |
| 1 | 10' | 9' 3" | 8' 1" | Min: 5' 7" Max: 8' 1" |
Min: 6' 3" Max: 8' 9" |
ALU8" x 6.35# | 4" | 4' 6" | 6" | 180 | 1ALU1008 | 4934 |
| 1 | 10' | 9' 3" | 8' 1" | Min: 7' 7" Max: 10' 1" |
Min: 8' 3" Max: 10' 9" |
ALU8" x 6.35# | 4" | 4' 6" | 6" | 187 | 1ALU1010 | 5195 |
| 1 | 10' | 9' 3" | 8' 1" | Min: 8' 6" Max: 11' |
Min: 10' 3" Max: 12' 9" |
ALU8" x 6.35# | 4" | 4' 6" | 6" | 227 | 1ALU1012 | 5994 |
| 1 | 12' | 11' 3" | 10' 1" | Min: 5' 7" Max: 8' 1" |
Min: 6' 3" Max: 8' 9" |
ALU8" x 6.35# | 4" | 4' 6" | 6" | 192 | 1ALU1208 | 5077 |
| 1 | 12' | 11' 3" | 10' 1" | Min: 7' 7" Max: 10' 1" |
Min: 8' 3" Max: 10' 9" |
ALU8" x 6.35# | 4" | 4' 6" | 6" | 199 | 1ALU1210 | 5337 |
| 1 | 12' | 11' 3" | 10' 1" | Min: 9' 7" Max: 12' 1" |
Min: 10' 3" Max: 12' 9" |
ALU8" x 6.35# | 4" | 4' 6" | 6" | 239 | 1ALU1212 | 6135 |
| 1 | 15' | 14' 3" | 13' 1" | Min: 5' 10" Max: 8' 1" |
Min: 6' 5" Max: 8' 11" |
ALU1 x 8.76# | 4 5/8" | 4' 6" | 6" | 248 | 1ALU1508 | 6555 |
| 1 | 15' | 14' 3" | 13' 1" | Min: 7' 10' Max: 10' 1" |
Min: 8' 5" Max: 10' 11" |
ALU1 x 8.76# | 4 5/8" | 4' 6" | 6" | 255 | 1ALU1510 | 6812 |
| 1 | 15' | 14' 3" | 13' 1" | Min: 9' 10" Max: 12' 1" |
Min: 10' 5" Max: 12' 11" |
ALU1 x 8.76# | 4 5/8" | 4' 6" | 6" | 295 | 1ALU1512 | 7611 |
| 1 | 18' | 17' 3" | 16' 9" | Min: 5' 10" Max: 8' 4" |
Min: 6' 11" Max: 9' 5" |
ALU12" x 10.99#* | 5" | 4' 4" | 6" | 389 | 1ALU1808 | 8171 |
| 1 | 18' | 17' 3" | 16' 9" | Min: 7' 10" Max: 10' 4" |
Min: 8' 11" Max: 11' 5" |
ALU12" x 10.99#* | 5" | 4' 4" | 6" | 401 | 1ALU1810 | 8430 |
| 1 | 18' | 17' 3" | 16' 9" | Min: 9' 10" Max: 12' 4" |
Min: 10' 11" Max: 13' 5" |
ALU12" x 10.99#* | 5" | 4' 4" | 6" | 441 | 1ALU1812 | 9229 |
| 1 | 20' | 19' 3" | 18' 9" | Min: 5' 10" Max: 8' 4" |
Min: 6' 11" Max: 9' 5" |
ALU12" x 10.99#* | 5" | 4' 4" | 6" | 423 | 1ALU2008 | 8674 |
| 1 | 20' | 19' 3" | 18' 9" | Min: 7' 10" Max: 10' 4" |
Min: 8' 11" Max: 11' 5" |
ALU12" x 10.99#* | 5" | 4' 4" | 6" | 435 | 1ALU2010 | 8934 |
| 1 | 20' | 19' 3" | 18' 9" | Min: 9' 10" Max: 12' 4" |
Min: 10' 11" Max: 13' 5" |
ALU12" x 10.99#* | 5" | 4' 4" | 6" | 475 | 1ALU2012 | 9732 |
All weights are estimates and not guaranteed for shipping purposes.
2 Ton
| A Capacity (Tons) |
B Overall Span |
B2 Span Between Wheel Centers |
C Clear Span |
D1 Height Under Beam |
D2 Overall Height |
E1 Beam Size |
E2 Beam Flange Width |
F Caster Frame Spread |
G Wheel Dia. |
Net Weight (lbs) |
Model No. | Price (USD) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 8' | 7' 3" | 6' 9" | Min: 5' 10" Max: 8' 4" |
Min: 6' 6" Max: 9' |
ALU8" x 6.35# | 4" | 4' 4" | 8" | 237 | 2ALU0808 | 6003 |
| 2 | 8' | 7' 3" | 6' 9" | Min: 7' 10" Max: 10' 4" |
Min: 8' 6" Max: 11' |
ALU8" x 6.35# | 4" | 4' 4" | 8" | 246 | 2ALU0810 | 6527 |
| 2 | 8' | 7' 3" | 6' 9" | Min: 9' 10" Max: 12' 4" |
Min: 10' 6" Max: 13' |
ALU8" x 6.35# | 4" | 4' 4" | 8" | 276 | 2ALU0812 | 7325 |
| 2 | 10' | 9' 3" | 8' 9" | Min: 5' 10" Max: 8' 4" |
Min: 6' 8" Max: 9' 2" |
ALU1 x 6.35# | 4 5/8" | 4' 4" | 8" | 274 | 2ALU1008 | 7133 |
| 2 | 10' | 9' 3" | 8' 9" | Min: 7' 10" Max: 10' 4" |
Min: 8' 8" Max: 11' 2" |
ALU1 x 6.35# | 4 5/8" | 4' 4" | 8" | 286 | 2ALU1010 | 7618 |
| 2 | 10' | 9' 3" | 8' 9" | Min: 9' 10" Max: 12' 4" |
Min: 10' 8" Max: 13' 2" |
ALU1 x 6.35# | 4 5/8" | 4' 4" | 8" | 313 | 2ALU1012 | 8417 |
| 2 | 12' | 11' 3" | 10' 9" | Min: 5' 10" Max: 8' 4" |
Min: 6' 1" Max: 9' 4" |
ALU12" x 10.99# | 5" | 4' 4" | 8" | 322 | 2ALU1208 | 8356 |
| 2 | 12' | 11' 3" | 10' 9" | Min: 7' 10" Max: 10' 4" |
Min: 8' 1" Max: 11' 4" |
ALU12" x 10.99# | 5" | 4' 4" | 8" | 334 | 2ALU1210 | 8880 |
| 2 | 12' | 11' 3" | 10' 9" | Min: 9' 10" Max: 12' 4" |
Min: 10' 1" Max: 13' 4" |
ALU12" x 10.99# | 5" | 4' 4" | 8" | 361 | 2ALU1212 | 9679 |
| 2 | 15' | 14' 3" | 13' 9" | Min: 5' 10" Max: 8' 4" |
Min: 6' 1" Max: 9' 4" |
ALU12" x 10.99# | 5" | 4' 4" | 8" | 355 | 2ALU1508 | 9272 |
| 2 | 15' | 14' 3" | 13' 9" | Min: 7' 10" Max: 10' 4" |
Min: 8' 1" Max: 11' 4" |
ALU12" x 10.99# | 5" | 4' 4" | 8" | 367 | 2ALU1510 | 9796 |
| 2 | 15' | 14' 3" | 13' 9" | Min: 9' 10" Max: 12' 4" |
Min: 10' 1" Max: 13' 4" |
ALU12" x 10.99# | 5" | 4' 4" | 8" | 394 | 2ALU1512 | 10594 |
All weights are estimates and not guaranteed for shipping purposes.
3 Ton
| A Capacity (Tons) |
B Overall Span |
B2 Span Between Wheel Centers |
C Clear Span |
D1 Height Under Beam |
D2 Overall Height |
E1 Beam Size |
E2 Beam Flange Width |
F Caster Frame Spread |
G Wheel Dia. |
Net Weight (lbs) |
Model No. | Price (USD) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 8' | 7' 2" | 6' 8" | Min: 6' 2" Max: 8' 2" |
Min: 7' 2" Max: 9' 2" |
ALU12" x 10.99# | 5" | 4' 8" | 8" | 350 | 3ALU0808 | 8928 |
| 3 | 8' | 7' 2" | 6' 8" | Min: 7' 8" Max: 10' 2" |
Min: 8' 8" Max: 11' 2" |
ALU12" x 10.99# | 5" | 4' 8" | 8" | 369 | 3ALU0810 | 9532 |
| 3 | 8' | 7' 2" | 6' 8" | Min: 9' 8" Max: 12' 2" |
Min: 10' 8" Max: 13' 2" |
ALU12" x 10.99# | 5" | 4' 8" | 8" | 416 | 3ALU0812 | 10619 |
| 3 | 10' | 9' 2" | 8' 8" | Min: 6' 2" Max: 8' 2" |
Min: 7' 2" Max: 9' 2" |
ALU12" x 10.99# | 5" | 4' 8" | 8" | 372 | 3ALU1008 | 9496 |
| 3 | 10' | 9' 2" | 8' 8" | Min: 7' 8" Max: 10' 2" |
Min: 8' 8" Max: 11' 2" |
ALU12" x 10.99# | 5" | 4' 8" | 8" | 391 | 3ALU1010 | 10105 |
| 3 | 10' | 9' 2" | 8' 8" | Min: 9' 8" Max: 12' 2" |
Min: 10' 8" Max: 13' 2" |
ALU12" x 10.99# | 5" | 4' 8" | 8" | 438 | 3ALU1012 | 11193 |
| 3 | 12' | 11' 2" | 10' 8" | Min: 6' 2" Max: 8' 2" |
Min: 7' 3" Max: 9' 3" |
ALU12" x 10.99#* | 5" | 4' 8" | 8" | 426 | 3ALU1208 | 10903 |
| 3 | 12' | 11' 2" | 10' 8" | Min: 7' 8" Max: 10' 2" |
Min: 8' 9" Max: 11' 3" |
ALU12" x 10.99#* | 5" | 4' 8" | 8" | 445 | 3ALU1210 | 11508 |
| 3 | 12' | 11' 2" | 10' 8" | Min: 9' 8" Max: 12' 2" |
Min: 10' 9" Max: 13' 3" |
ALU12" x 10.99#* | 5" | 4' 8" | 8" | 491 | 3ALU1212 | 12595 |
| 3 | 15' | 14' 2" | 13' 8" | Min: 6' 2" Max: 8' 2" |
Min: 7' 3" Max: 9' 3" |
ALU12" x 10.99#* | 5" | 4' 8" | 8" | 467 | 3ALU1508 | 11966 |
| 3 | 15' | 14' 2" | 13' 8" | Min: 7' 8" Max: 10' 2" |
Min: 8' 9" Max: 11' 3" |
ALU12" x 10.99#* | 5" | 4' 8" | 8" | 479 | 3ALU1510 | 12575 |
| 3 | 15' | 14' 2" | 13' 8" | Min: 9' 8" Max: 12' 2" |
Min: 10' 9" Max: 13' 3" |
ALU12" x 10.99#* | 5" | 4' 8" | 8" | 532 | 3ALU1512 | 13662 |
All weights are estimates and not guaranteed for shipping purposes.
Aluminum LUG-ALL Winch Hoist Height Adjustment Kits
This Lug-all winch hoist adjustment kit includes two cable winch hoists to change the I-Beam height quickly and easily. This specific kit is deigned to be compatible with the Aluminum Gantry Cranes. Click the Part No. below to add to your cart.
| Part No. | Kit Capacity = Crane Wt + Hoist Wt +Trolley Wt |
Price (USD) |
|---|---|---|
| 03-015 | Less Than 3,000 lbs | 828 |
